Monolayer Graphene on SiO₂/Si 300 nm
from $50.00

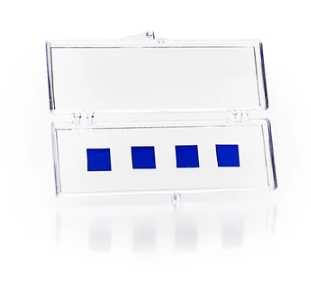

Monolayer Graphene on SiO₂/Si - Fully Covered - Processed in Clean Room Class 1000
This monolayer graphene on SiO₂/Si (fully covered) is a bidimensional material produced by CVD and transferred to a circular substrate of SiO₂/Si (300nm) by a wet transfer process. We consider it to be a benchmark product in the graphene market - not only for its excellent quality, but also for its shape, size and number of applications.
Graphene Film
Growth method: CVD synthesis
Appearance (color): Transparent
Transparency: > 97%
Coverage: > 95%
Number of graphene layers: 1
Thickness (theoretical): 0.345 nm
FET Electron Mobility on Al2O3 passivated SiO2/Si: 6900 cm2
FET Electron Mobility on SiO₂/Si: 3760 cm2
Sheet Resistance on SiO₂/Si: 450±40 Ohms/sq (1cm x1cm)
Grain size: Up to 20 μm
Substrate SiO₂/SI
Dry Oxide Thickness: 300 nm (+/-5%)
Type/Dopant: P/Bor
Orientation: <100>
Resistivity: 1-10 ohm·cm
Thickness: 525 +/- 20 μm
Front surface: Single Side Polished
Back Surface: Etched
Particles: <10@0.3 μm
Quality Control
All our samples are subjected to a rigorous QC in order to ensure a high quality and reproducibility of the graphene. All our CVD materials are processed in Clean Room Class 1000. Each batch must pass the following tests:

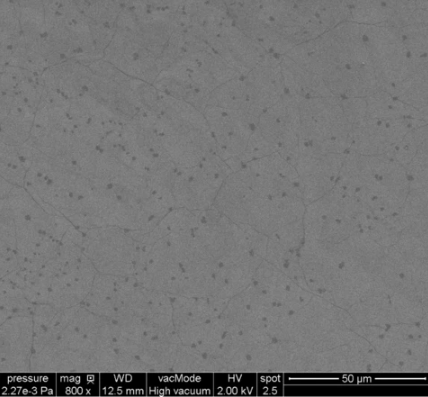

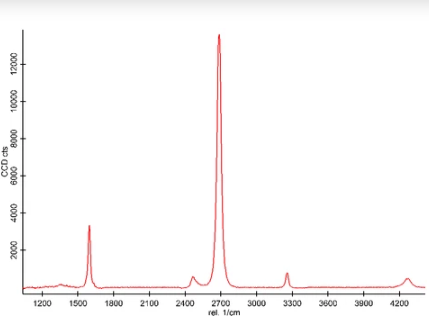

Raman Spectroscopy on each batch: I(G)/I(2D)<0.7; I(D)/I(G)<0.05

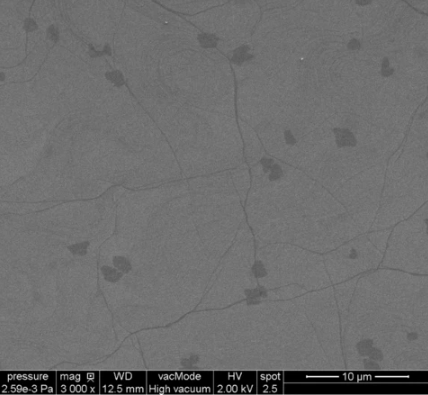

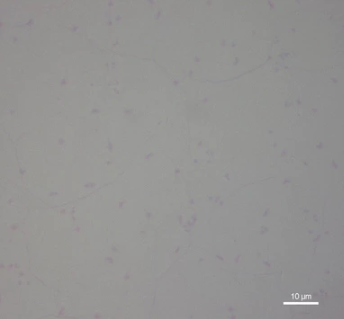

Optical Microscopy inspection of each individual sample to ensure good transfer quality and purity
If your application requires more specific controls (AFM, SEM...) please do not hesitate to contact us.
